Hanger Shot Blasting Machine

Hanger Shot Blasting Machine

Puhua® Hanger Shot Blasting Machine is mainly used for surface cleaning of casting, structure, non-ferrous and other parts. This series shot blasting machine have many types, such as single hook type, double hook type, lifting type, non-lifting type. It has advantage of non-pit, compact structure, high productivity, etc.

Product Detail

Qingdao Puhua Heavy Industrial Machinery Co., Ltd. is a leading China Puhua® Hanger Shot Blasting Machine manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products, so that our Hanger Shot Blasting Machine have been satisfied by many customers. Extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you. Of course, also essential is our perfect after-sales service. If you are interested in our Hanger Shot Blasting Machine services, you can consult us now, we will reply to you in time!

1.Introduction of Puhua® Hanger Shot Blasting Machine

Hanger Shot Blasting Machine is mainly used for surface cleaning of casting, structure, non-ferrous and other parts. This series shot blasting machine have many types, such as single hook type, double hook type, lifting type, non-lifting type. It has advantage of non-pit, compact structure, high productivity, etc.
1). The equipment is mainly applied in the processing of medium and small size workpieces in large scale. It has the advantage of high efficiency, compact structure.
2). Workpieces can be transported continuously. The working procedure is that, setting the speed, hanging workpieces over the hooks, and removing them after shot cleaning.
3). Each single hook can hang weight from 10 kgs to 5000 kgs with high productivity and stable running.
4). It makes a best effect on complicated workpieces both the surface and inner part, such as cylinder cap of engine and motor casing.
5). It is an ideal choice for auto, tractor, diesel engine, motor and valve industry. s


2.Specification of Puhua® Hanger Shot Blasting Machine:

Model Q376(customizable)
Maximum weight of cleaning(kg) 500---5000
Abrasive flow rate(kg/min) 2*200---4*250
Ventilation on capacity(m³/h) 5000---14000
Lifting amount of elevating conveyor(t/h) 24---60
Separating amount of separator(t/h) 24---60
Max overall dimensions of suspender(mm) 600*1200---1800*2500

We can design and manufacture all kinds of non-standard Hanger Shot Blasting Machine according to customer different workpiece detail requirement,weight and productivity.


3.Details of Puhua® Hanger Shot Blasting Machine:

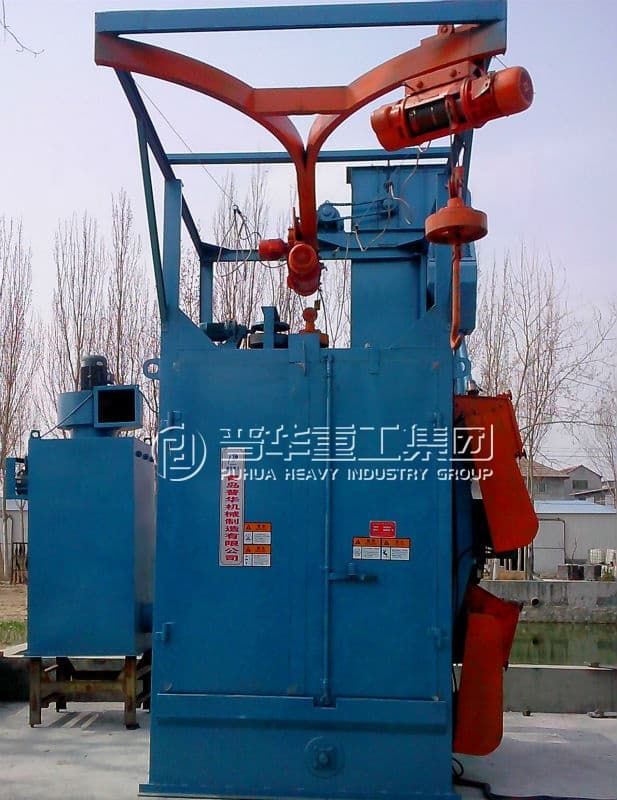

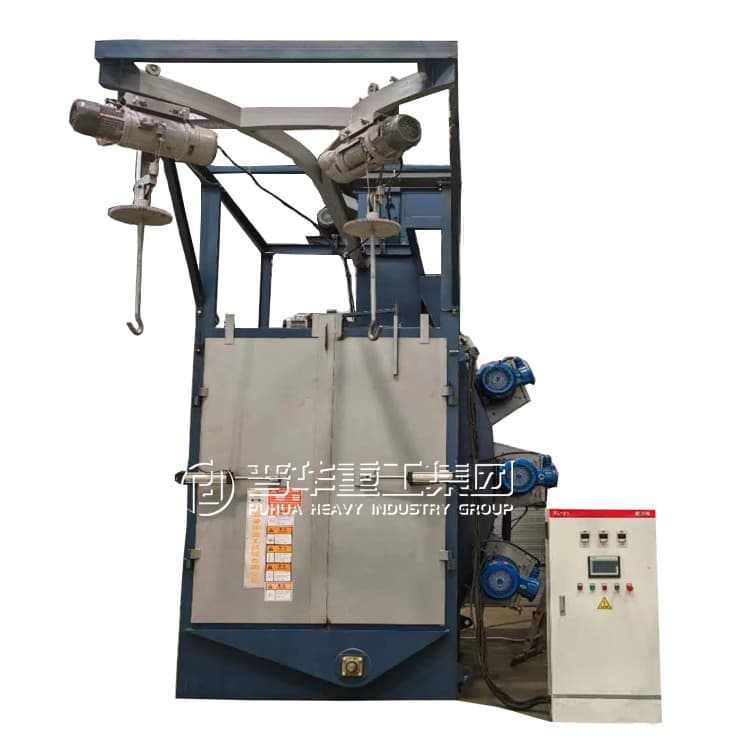

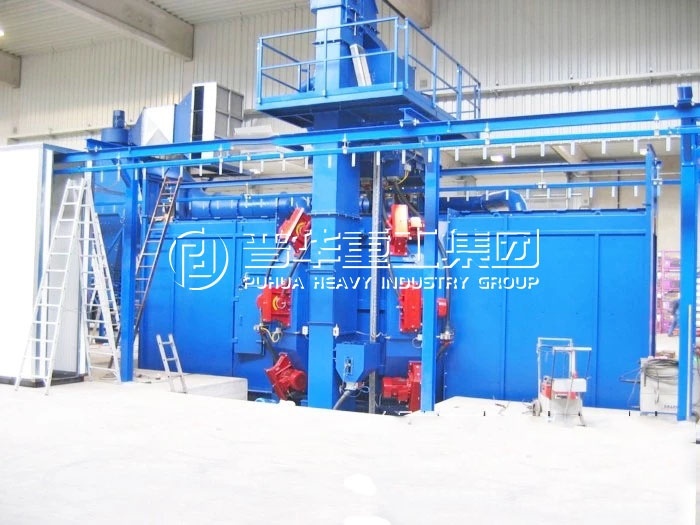

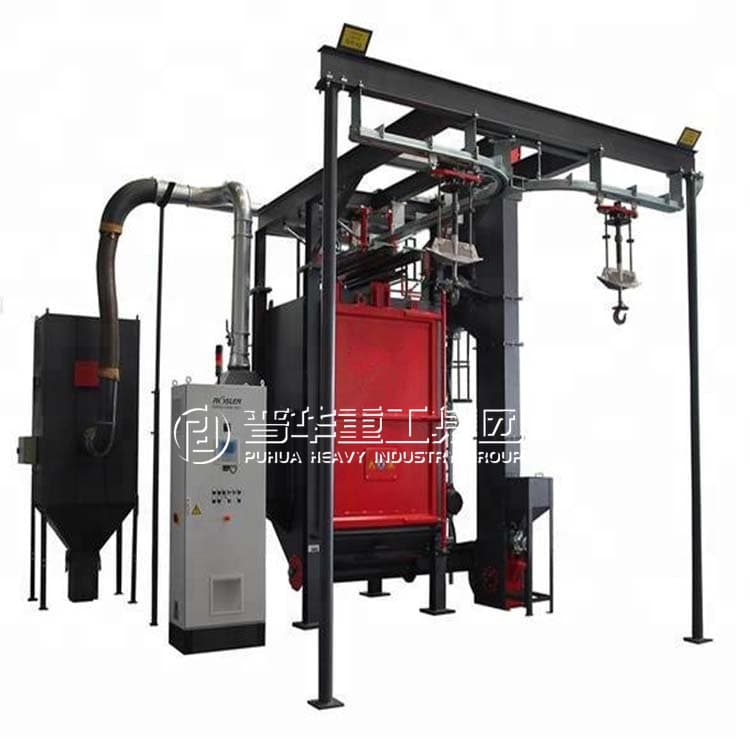

These pictures will better help you understand



4. Certification of Hanger Shot Blasting Machine:

Qingdao Puhua Heavy Industrial Group was established in 2006, total registered capital over 8,500,000 dollar, total area nearly 50,000 square meters.
Our company have passed CE, ISO certificates. As a result of our high-quality Hanger Shot Blasting Machine:, customer service and competitive price, we have gained a global sales network reaching more than 90 countries on five continents.


5.FAQ

1. What is the delivery time?
20-40 working day, based on factory’s production order conditions.
2. How to installation Hanger Shot Blasting Machine:?
We supply overseas service, engineer can go to your place guide installation and debugging.
3. What size machine suit for us?
We design machine following your request, usually based on your workpiece size, weight and efficiency.
4. How to control the quality of Hanger Shot Blasting Machine:?
One year warranty,and 10 teams QC to check every part from drawing to machine finished.
5. What work part can clean by Hanger Shot Blasting Machine:?
castings,forging parts and steel construction parts for clearing little viscous sand, sand core and oxide skin. It is also suitable for surface cleaning and strengthening on heat treatment parts, especially for cleaning slightness, thin wallparts which is not suitable for impact.
6. What type abrasive used?
0.8-1.2 mm size wire cast steel shot
7. How it control for whole work?
PLC control, setup safety interlock device between system
◆If the examining door is open, the impeller heads won’t start.
◆If the cover of impeller head is open, the impeller head won’t start.
◆If the impeller heads doesn’t work, the shots valves won’t work.
◆If the separator won’t work, the elevator won’t work.
◆If the elevator won’t work, the screw conveyor won’t work.
◆If the screw conveyor won’t work, the shots valve won’t work.
◆Error warning system on abrasive circle system, any error come, all the above work will stop automatic.
8. What is the clean speed:
Can be customized, usually 0.5-2.5 m/min
9. What clean grade?
Sa2.5 metal luster


6. Our service:

1.Machine guarantee one year except damage by human wrong operation caused.
2.Provide installation drawings, pit design drawings, operation manuals, electrical manuals, maintenance manuals, electrical wiring diagrams, certificates and packing lists.
3.We can go to your factory to guiding installation and train your stuff.

If you are interested in Hanger Shot Blasting Machine:, you are welcome to contact us.
